Mecanum Wheel

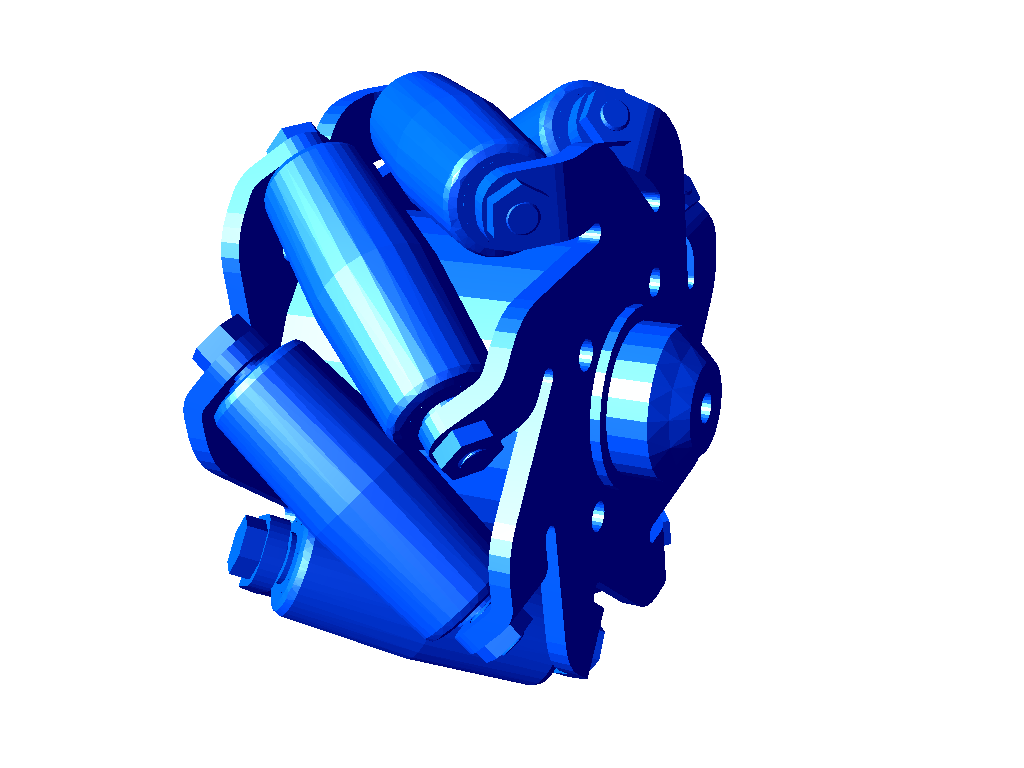

The mecanum wheel is a type of omnidirectional wheel designed specifically for robotics. It allows the robot to move in any direction, including diagonally, without having to turn. The mecanum wheel is made up of a series of small rollers mounted at a 45 degree angle to the circumference of the wheel. These rollers allow the mecanum wheel to slide laterally and diagonally, allowing the robot to be very mobile.

Using the mecanum wheel is especially useful in mobile robotics applications such as cleaning robots, transport robots, security robots and inspection robots. In addition, the mecanum wheel is ideal for environments with little space, as the robot can move around without the need to perform complex maneuvers.

It is important to note that the mecanum wheel requires precise control to function properly. An inadequate control system can cause oscillations and instability in the robot. However, when used correctly, the mecanum wheel is a valuable tool for mobile robotics.

Quantity of pieces

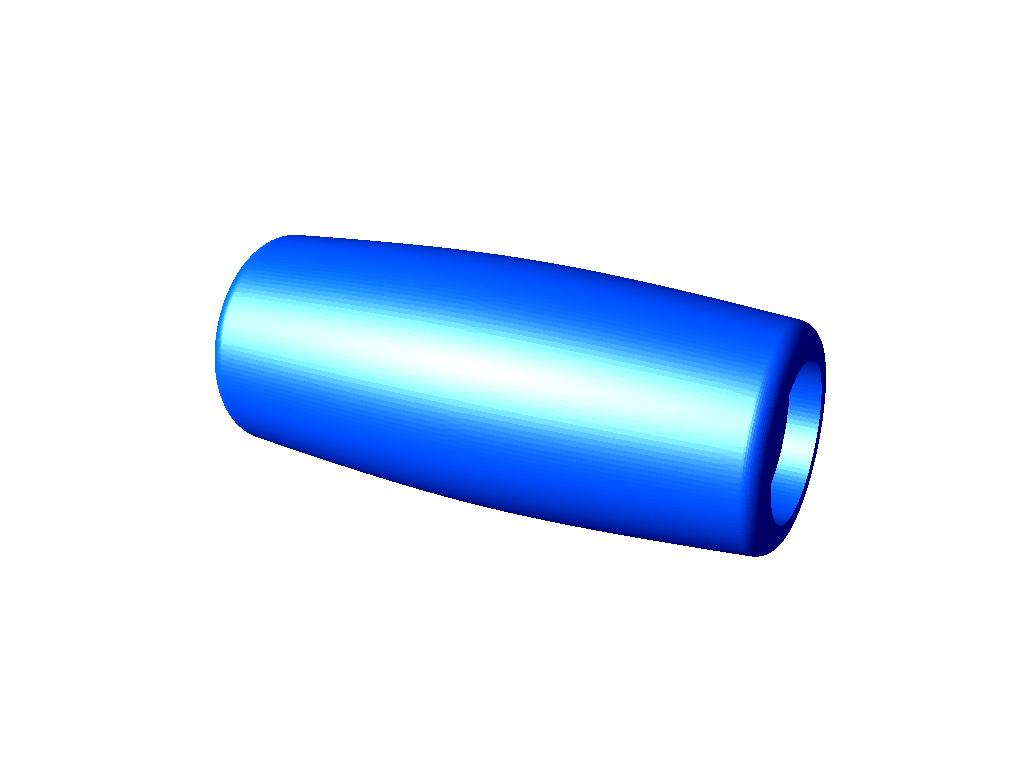

08 x Rollers

32 x rings

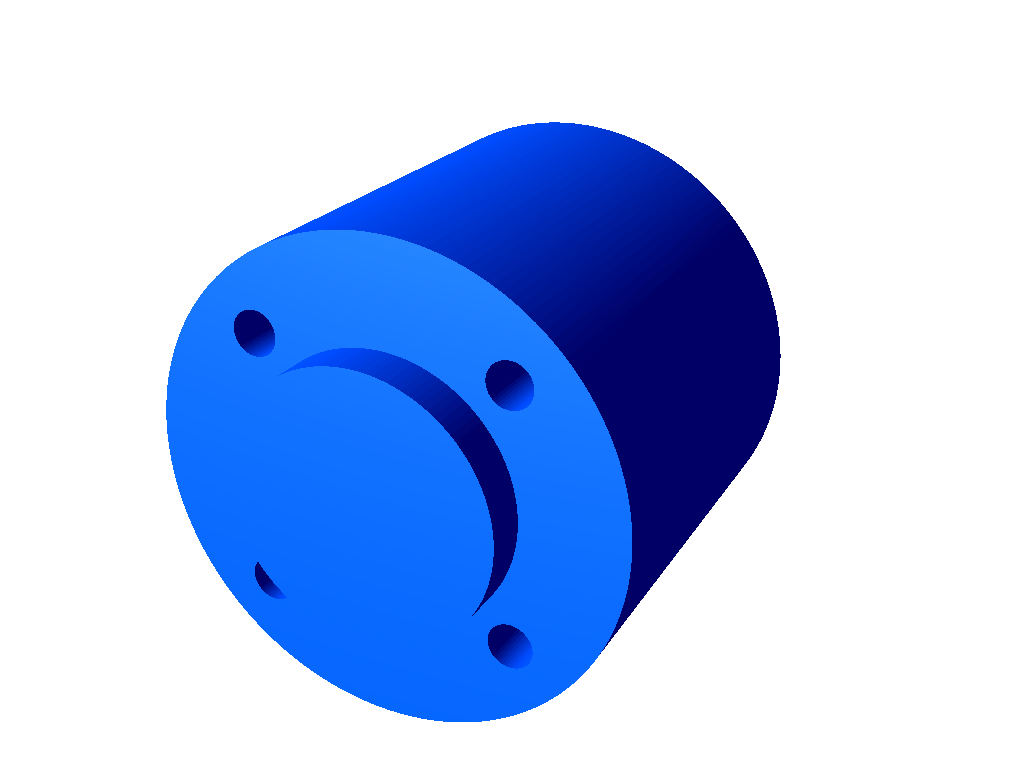

02 x Roller connector

Important Note: Use the .STL files to 3D print the wheel. The .step file was made available for you to study and understand the structure of the mecanum wheel and each part.
