Handwired split keyboard case
- Category: Tech
- License: CC BY 4.0
Description

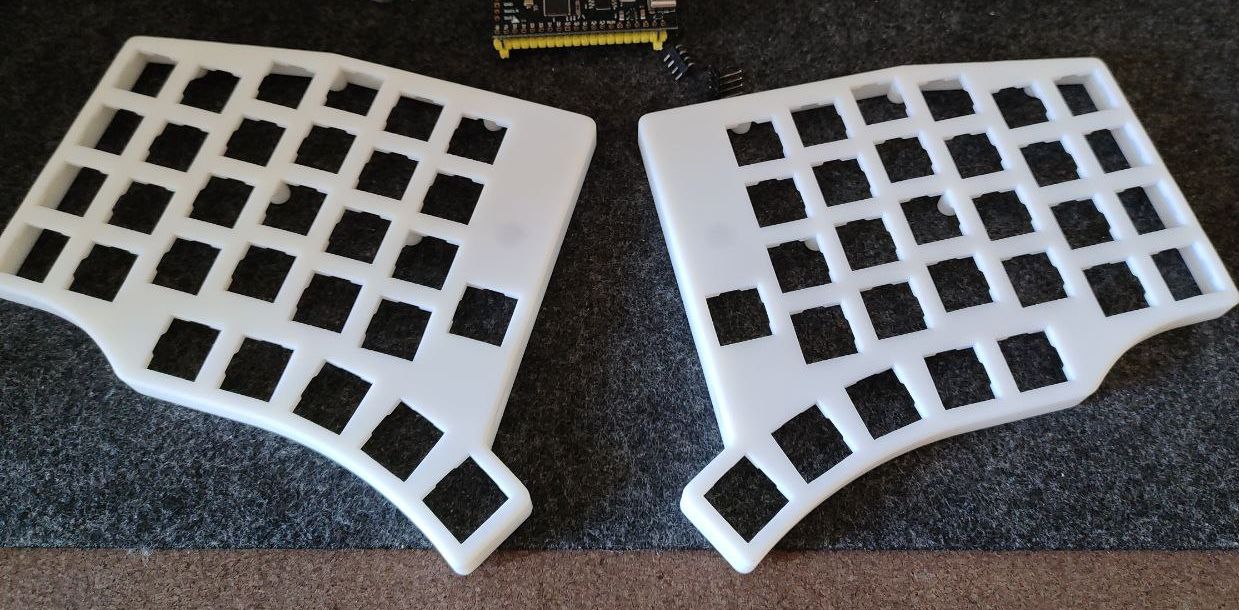

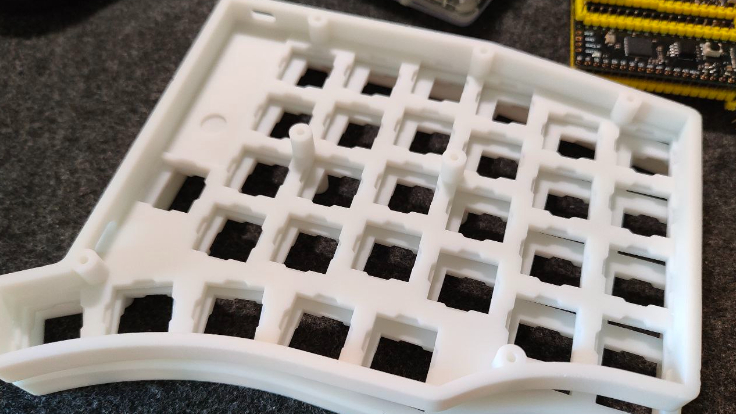

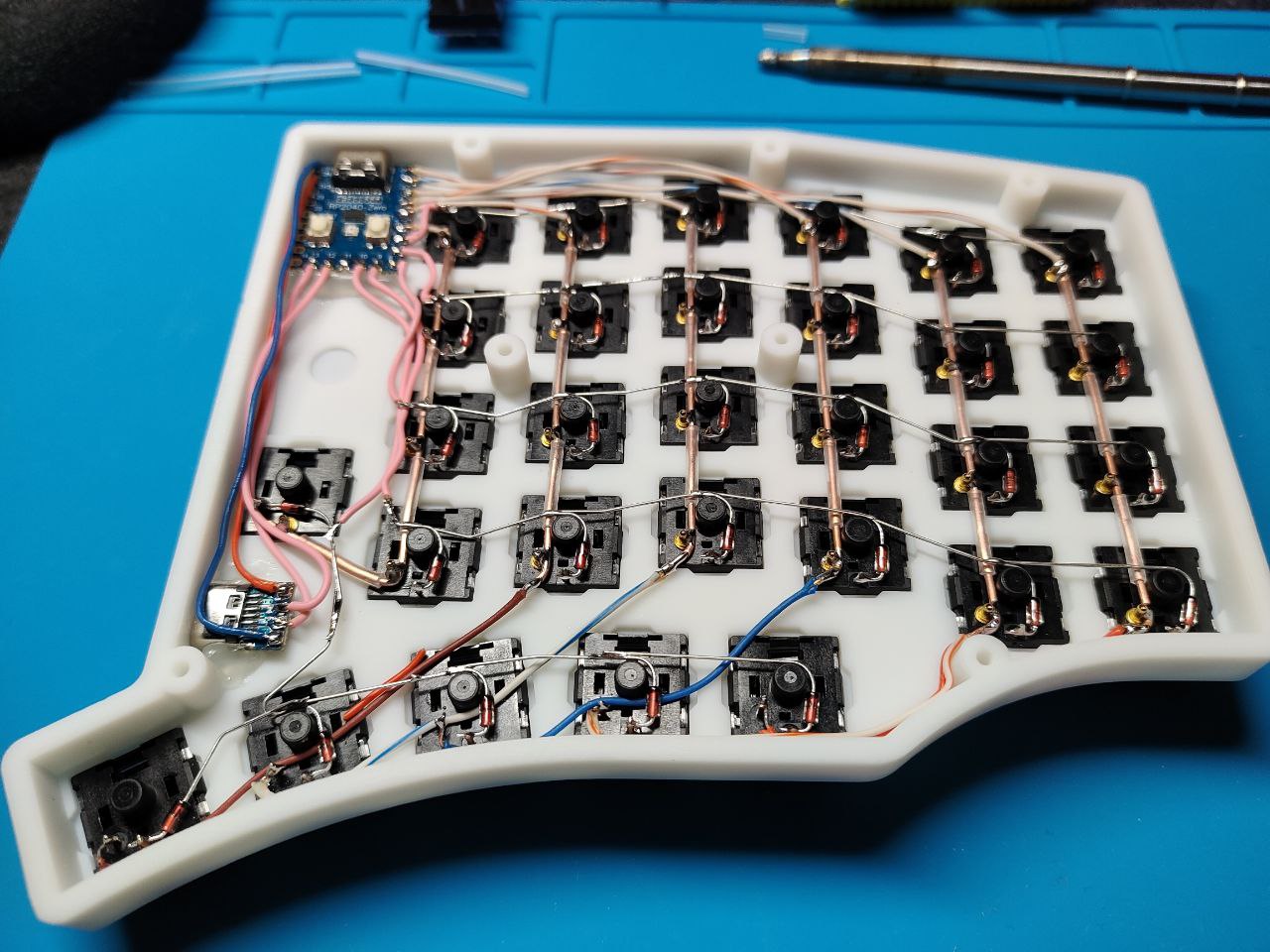

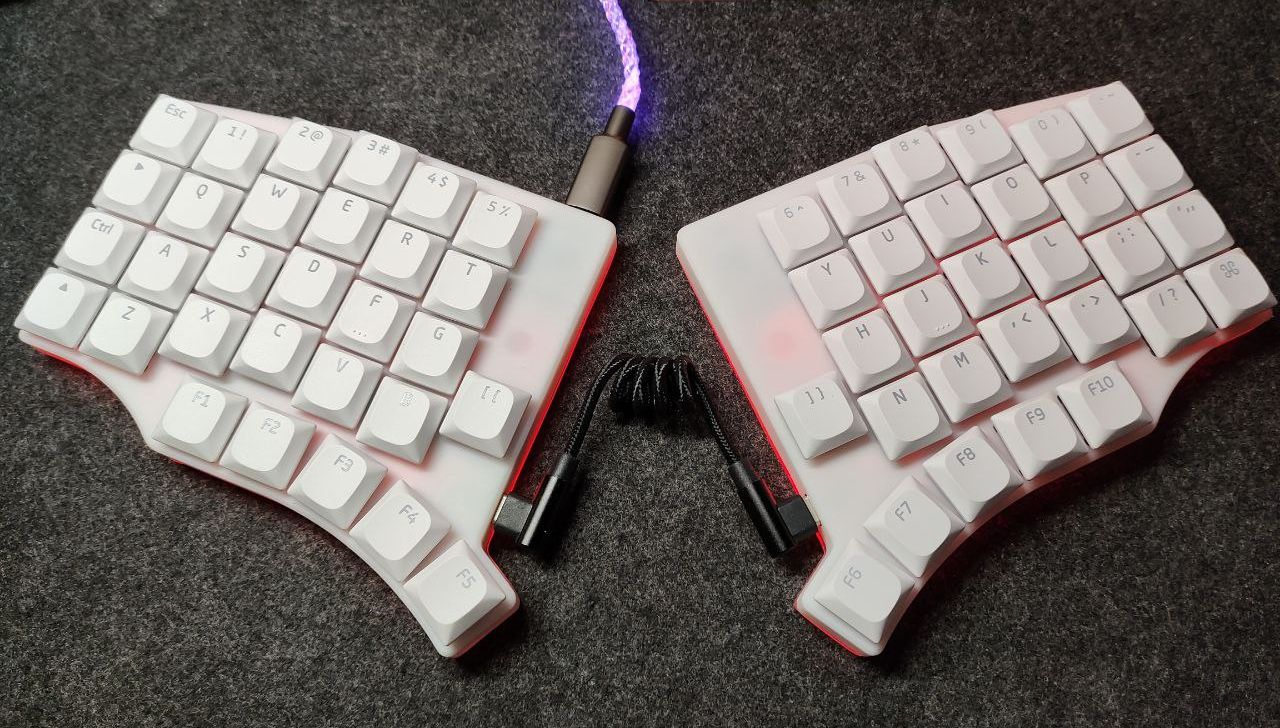

Custom 60 key handwired split keyboard case. The left and the right sides are different. The bottom parts are identical, if you need the bottom parts order two the same bottom parts. In my case bottoms are cut by hands from acrylic sheet. Case is suitable not only for low profile switches, but also for full size ones. Controllers are Waveshare RP2040-Zero. Firmware is KMK. For underglow added few pieces of WS2812 RGB stripe.
Files (9)
|60 Downloads
|60 Downloads
|60 Downloads
|60 Downloads
|60 Downloads
|60 Downloads

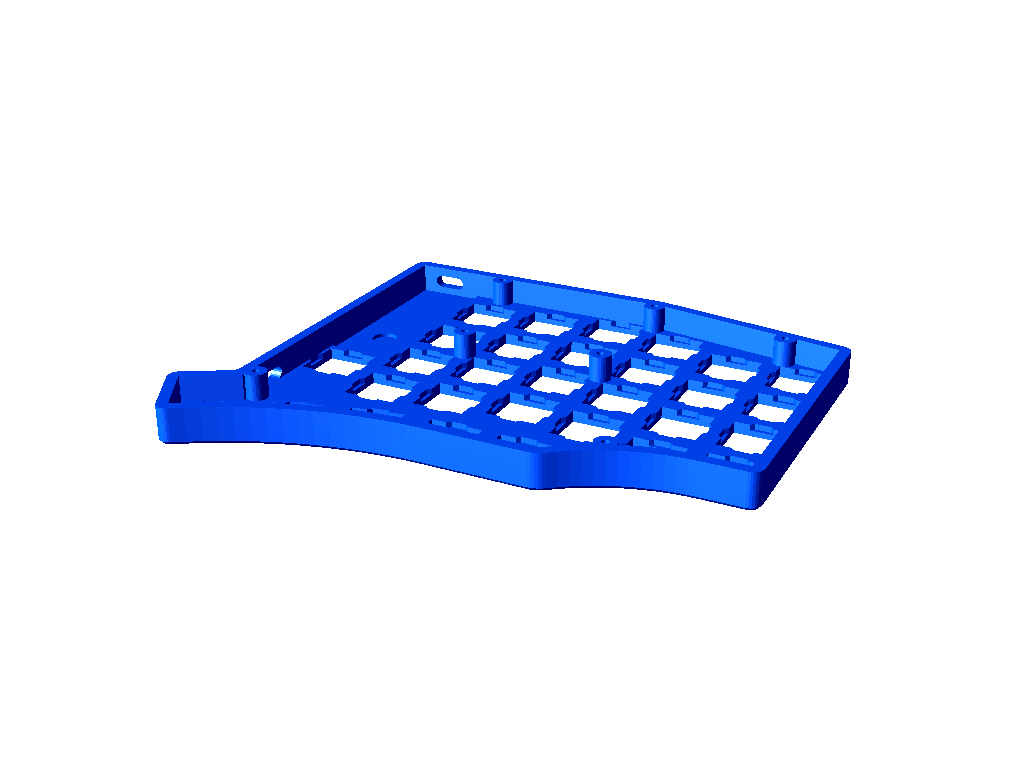

left.stl
149.77*10.00*120.48|71 Downloads

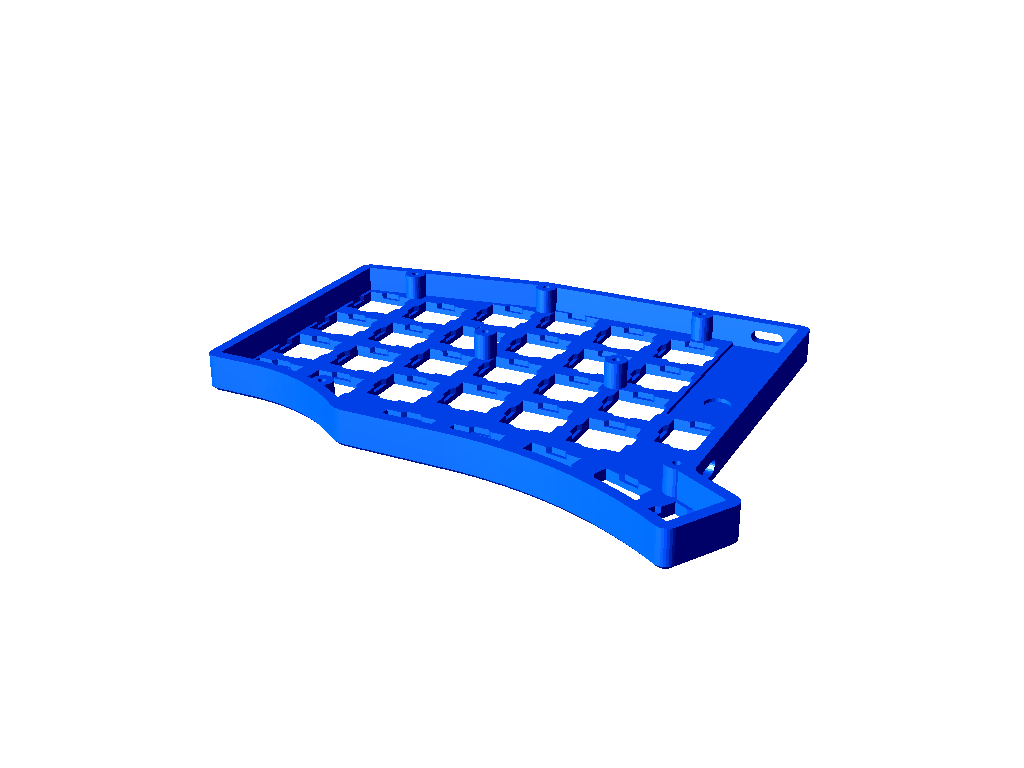

right.stl
149.77*10.00*120.48|64 Downloads

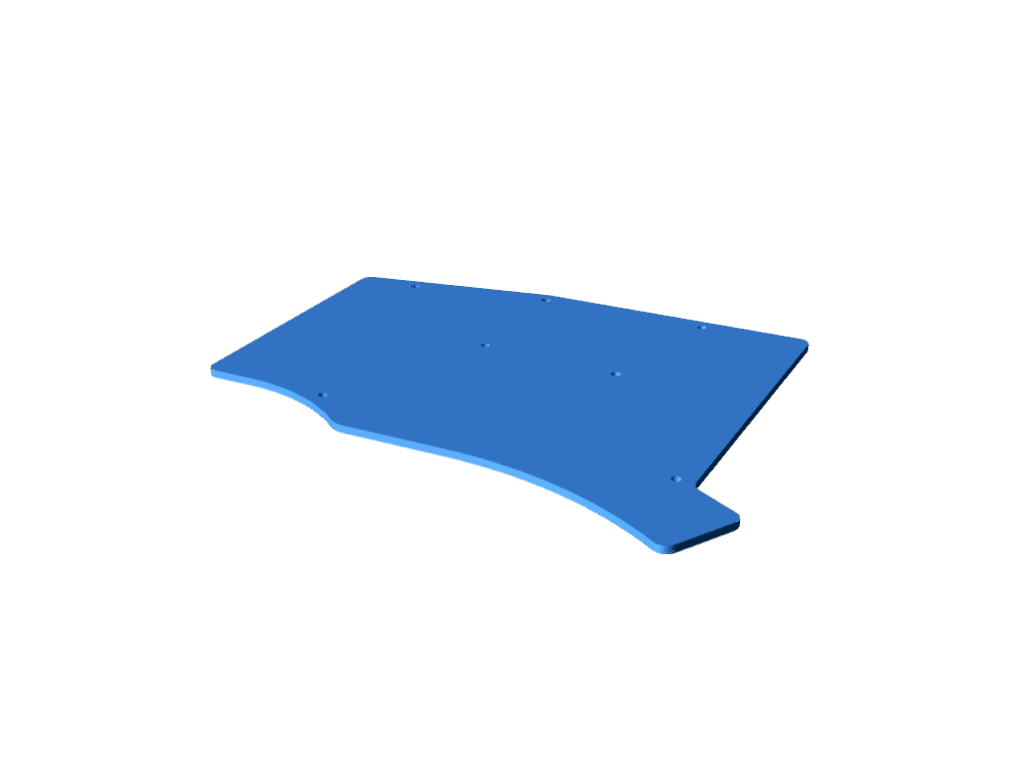

bottom split.stl
149.77*2.00*120.48|64 Downloads
